品牌:BRAHMA | 型号:EG25*L.3*GMO9 | 材质:铸铝 |
连接形式:内螺纹 | 压力环境:小于350mbar | 工作温度:常温 |
外形:微型 | 公称通径:20(mm) | 密封材料:NBR |
标准:国标 | 流动方向:单向 | 形态:柱塞式 |
零部件及配件:线圈 | 类型(通道位置):直通式 | 适用介质:燃气 天然气 液化气 煤气 |

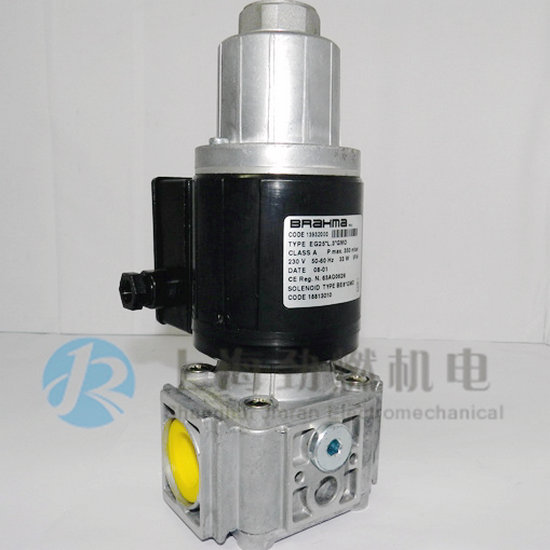

EG25系列燃气电磁阀 品牌:Brahma(布拉玛) 产地:意大利 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
产品介绍 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
EG25*L3*GMO9燃气电磁阀为慢开快关、带流量调节,口径为3/4"。接线方式为电磁阀自带接线盒,内部接线。 This series of solenoid valves are of normally closed type, suitable for civil and industrial applications, supplied with alternate or direct current and inclusive of inside rectification circuit which permitted to make actions as silent as possible; a wire-net filter on the inlet avoids the entrance of dirt of > 1mm. There is the possibility to have a fast opening or a slow opening valve (obtained by special hydraulic shock-absorber), with flow adjustment and fast opening initial flow adjustment. All versions can be connected with suitable fixing brackets, provided with by-pass solenoid valves and pressure plugs upstream and downstream. Gas valves of this series, conforming to EN161, have a CE type Certificate (CE Reg. N° 63AQ0626) in accordance to European Directives 90/396 and 93/68. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
型号表 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
技术参数 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
