品牌:BRAHMA,布拉马 | 型号:E6G*S10*1/2*GMO | 材质:铸铝 |
类型(通道位置):直通式 | 连接形式:内螺纹 | 公称通径:15(mm) |
适用介质:燃气 天然气 液化气 煤气 | 流动方向:单向 | 零部件及配件:线圈 |
用途:截止 | 形态:柱塞式 | 压力环境:小于500mbar |
工作温度:常温 | 标准:国标 | 规格:E6G*S10*1/2*GMO |

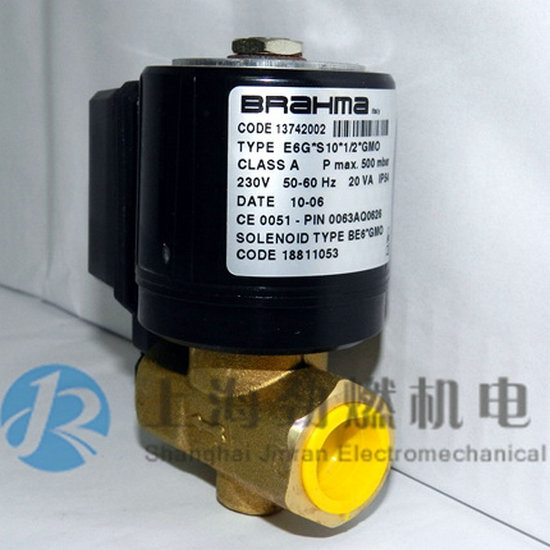

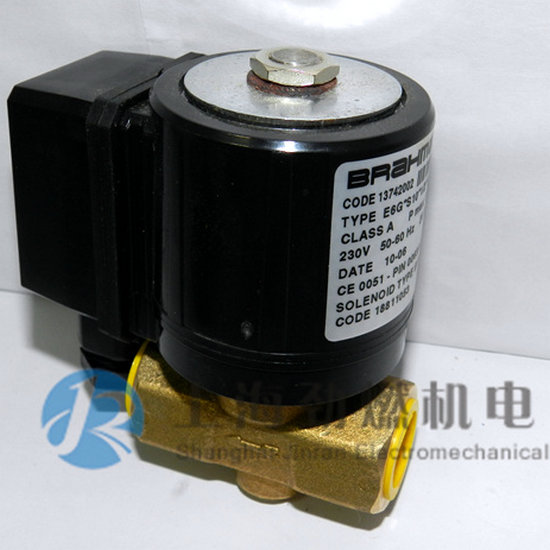

E6G系列燃气电磁阀
品牌:Brahma(布拉玛) 产地:意大利 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
产品介绍 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E6G*S10*1/2*GMO 为意大利BRAHMA公司出品的燃气电磁阀 口径:1/2" 开启速度:快开快关 流量调节:不带流量调节 用途:安全电磁阀、紧急切断阀、截止阀等 This series of solenoid valves are of normally closed type, suitable for civil and industrial applications, supplied with alternate or direct current. These valves are divided into two groups: with 8mm or 10mm orifice. Gas valves, marked with “S” or “L” after type reference, have coil operating in direct current, which permitted to make its actions as silent as possible. There is the possibility to have valves provided with inlet pressure plug or outlet pressure plug (excluding G1/4” connection ones) and, 10mm orifice only, valves equipped with hydraulic lag group, which permits slow opening; in this case it is also possible to have a quick and adjustable opening initial flow. Gas valves of this series, conforming to EN161, have a CE type Certificate (CE Reg. N° 63AQ0626) in accordance to European Directives 90/396 and 93/68. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
型号表 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
技术参数 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
