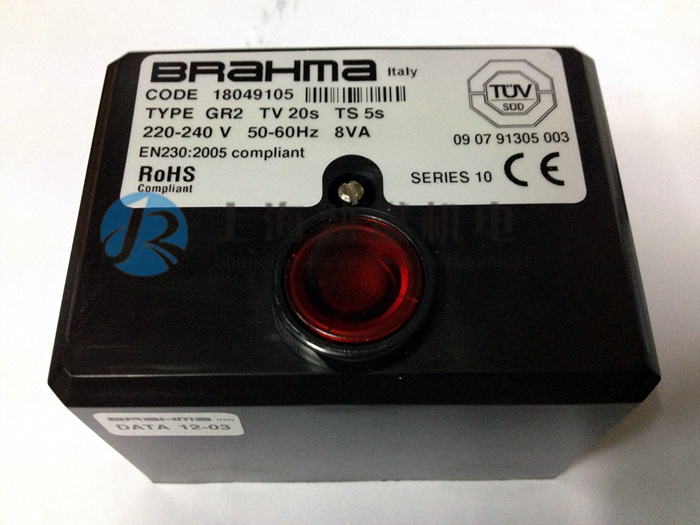

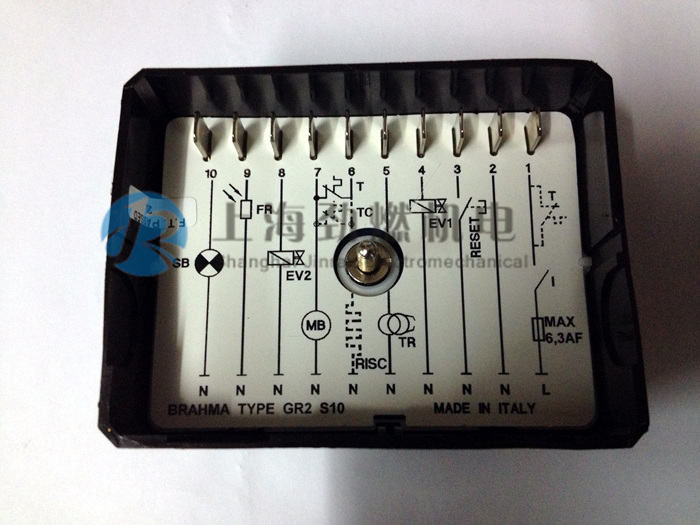

GR2型号程控器多用于意大利BALTUR百得品牌的燃油燃烧器上。包括SPARK26DSG,SPARK30DSG,SPARK35DSG,BT40G等。
替代原有OR3/B使用
|
OR3系列燃油燃烧器控制器
品牌：Brahma（布拉玛）
产地：意大利
|
|
产品介绍 |
|
This range of electronic oil burner controls has been specifically designed for oil burners for non permanent operation.
The automatic burner controls of this series are suitable for:
-
monobloc oil burners
-
warm air generators
-
steam boilers
-
power washers
-
kilns
Due to the technical and structural characteristics and to the variety of models they can be used for the automation of cookers and oil burner operated appliances for domestic and industrial applications.
|
|
型号表 |
|
型号 |
单段火 |
双段火 |
预热器 |
燃油量<30kg/h |
燃油量>30kg/h |
预点火 |
锁定灯 |
远程复位 |
火焰探测FC7/FC8 |
火焰探测FC11/FC13 |
按钮复位 |
|
G22 |
* |
|
* |
* |
|
* |
* |
|
* |
|
* |
|
G22/A |
* |
|
* |
* |
|
|
|
|
* |
|
* |
|
GF2 |
|
* |
|
* |
|
* |
* |
|
* |
|
* |
|
GF2/A |
|
* |
|
* |
|
|
* |
|
* |
|
* |
|
GF3 |
|
* |
|
|
* |
* |
* |
|
* |
|
* |
|
GF3/A |
|
* |
|
|
* |
|
* |
|
* |
|
* |
|
G33 |
* |
|
* |
* |
|
* |
* |
|
* |
|
* |
|
OR1 |
* |
|
* |
* |
|
* |
* |
|
|
* |
* |
|
OR2 |
|
* |
|
* |
|
* |
* |
|
|
* |
* |
|
OR3 |
|
* |
|
|
* |
* |
* |
|
|
* |
* |
|
OR3/B |
|
* |
* |
|
* |
* |
* |
|
|
* |
* |
|
OR1/Z |
* |
|
* |
* |
|
* |
* |
|
|
* |
* |
|
F22 |
* |
|
* |
* |
|
* |
* |
* |
* |
|
|
|
FR1 |
* |
|
* |
* |
|
* |
* |
* |
|
* |
|
|
FR2 |
|
* |
|
* |
|
* |
* |
* |
|
* |
|
|
|
|
技术参数 |
|
主电压 |
220/240V 50/60Hz |
|
110/120V 50/60Hz |
|
运行温度 |
-20oC...+60oC |
|
环境湿度 |
最大90%（在40oC） |
|
保护等级 |
IP40 |
|
时间 |
|
预点火时间 |
1.5/10/20/30/40s |
|
安全时间 |
5/10s |
|
火焰失败后的反映时间 |
<1s |
|
功率 |
18VA |
|
端口额定电流 |
|
预热器端口 |
6.0A |
|
马达端口 |
2.0A |
|
点火变压器端口 |
2.0A |
|
电磁阀1端口 |
0.5A |
|
电磁阀2端口 |
0.5A |
|
报警端口 |
1.0A |
|
内部保险丝 |
6.3A慢速 |
|
外部保险丝 |
4A快速 |
|
重量 |
230g |
|
