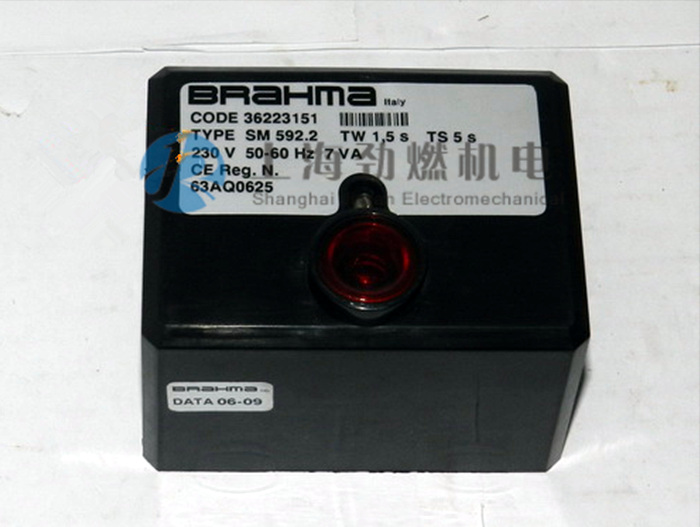

SM592.2 原装巴拉玛(BRAHMA)控制器

CODE 36223151 SM592.2布拉玛(BRAHMA)控制器 意大利控制器

产品介绍

SM592.2大气式燃气燃烧器控制器(外接点火)

品牌:Brahma(布拉玛)

产地:意大利

 产品介绍

AUTOMATIC GAS BURNER CONTROL SYSTEMS FOR GAS BURNERS AND GAS BURNING APPLIANCES WITH OR WITHOUT FAN

This range of electronic gas burner control systems has been designed specifically for atmospheric and fan assisted burners for intermittent operation (systems for non-permanent operation ).
All these controls are provided with non-volatile lock-out, which means that a restart from the safety shut-down condition can only be accomplished by a manual reset of the system.
The automatic burner control units of this series are suitable
for:
-combi boilers
-heating boilers
-warm air generators
-radiant heaters
-water heaters
Due to the design and the variety of models they can be
used also for the automation of ovens, cookers and in
general in gas firing installations with atmospheric burner.

 型号表
型号
单段火
双段火
大气式不带风机
大气式带风机
辅助触点
单点火电极
外部点火变压器
远程故障复位
本机故障复位
CM191
*

*

(B)
(A)
SM191
*

*

*

(A)
SM192

*
*

(B)
(A)
CM381
*

*

(B)
(A)
CM391
*

*

(A)
SM152

*
*

(B)
(A)
SM592

*
*

*
(B)
(A)
MM191
*

*

*

(B)
(A)
MM192

*
*

*

(B)
(A)

(A) Box type xxxxx.1 - xxxxx.2
(B) Box type xxxxx.3 - xxxxx.4

 技术参数
输入电压 230V 50/60Hz
110/120V 50/60Hz
运行温度 -20oC...+60oC
环境湿度 最大95%(在40oC)
保护等级 IP40
时间
预吹扫或者等待时间 1.5/3/5/10/20/30/40s
安全时间 5/10s
火焰失败后的反映时间 <1s
启动功率

大气式

10VA

大气式带风机

12VA
运行功率

大气式

7VA

大气式带风机

9VA
端口额定电流
风机端口 1.0A
点火变压器端口 1.5A
电磁阀1端口 0.5A
电磁阀2端口 0.5A
报警端口 0.5A
辅助触点 0.5A
内部保险丝 4A快速
外部保险丝 3.15A快速
重量 220g
火焰控制:此型号程控器采用离子棒检测火焰信号
最小离子电流 1.2uA
离子线最长 1m
离子棒对地电阻最小 50M欧
最大瞬时电流 200uA交流
点火参数
点火电压 8KV在30pF
点火频率 25Hz
最长点火高压线 2m
点火针间距 2-4mm
功率 2.5VA
点火能量 15mJ
